Electrical performance parameter
|
The component models
|
JY325P6-Da-5
|
JY320P6-Da-5
|
JY315P6-Da-5
|
The most powerful
|
325W
|
320W
|
315W
|
|
The efficiency of the component
|
16.45%
|
16.19%
|
15.94%
|
Maximum operating voltage
|
37.28V
|
37.13V
|
36.81V
|
Maximum operating current
|
8.72A
|
8.62A
|
8.56A
|
The open circuit voltage
|
46.31V
|
45.94V
|
45.75V
|
Short circuit current
|
9.28A
|
9.24A
|
9.12A
|
Working temperature
|
-40~+85℃
|
|
Output power tolerance
|
0 to +5W
|
Maximum system voltage
|
1500V DC
|
|
NOCT
|
45±2℃
|
Maximum fusing current
|
20A
|
The mechanical parameters
Battery model
|
polysilicon 156.75 mm x 156.75 mm
|
Number of cells
|
72 （6×12）
|
|
The component weight
|
28.1 kg (61.95 pounds)
|
|

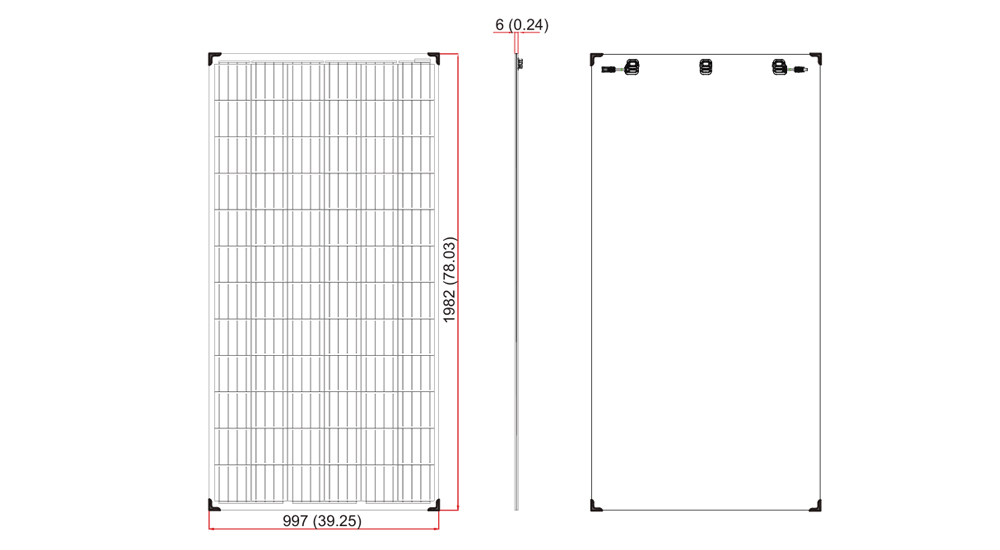

Component size
|
1982×997×6 mm(78.03×39.25×0.24 inches )
|
|
Terminal block
|
Protection gradeIP67
|
|
The connector
|
Compatible withMC4
|
|
cable
|
4mm 2 ，250 mm
|
The temperature parameter
|
Temperature coefficient of short circuit current
|
0.04%/℃
|
|
Temperature coefficient of open circuit voltage
|
-0.34%/℃
|
|
Maximum power temperature coefficient
|
-0.41%/℃
|
|
*All rights reserved. Specifications are subject to change without prior notice。
|

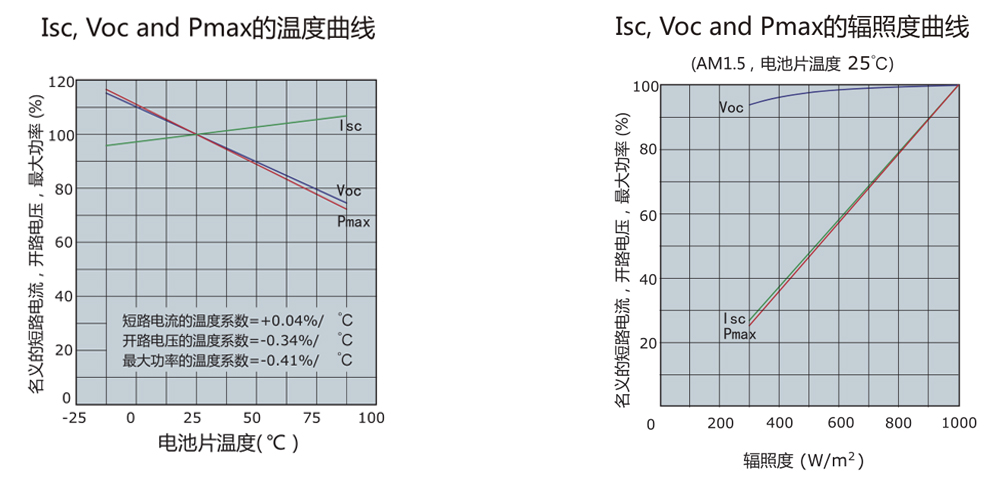

Electrical performance curve
